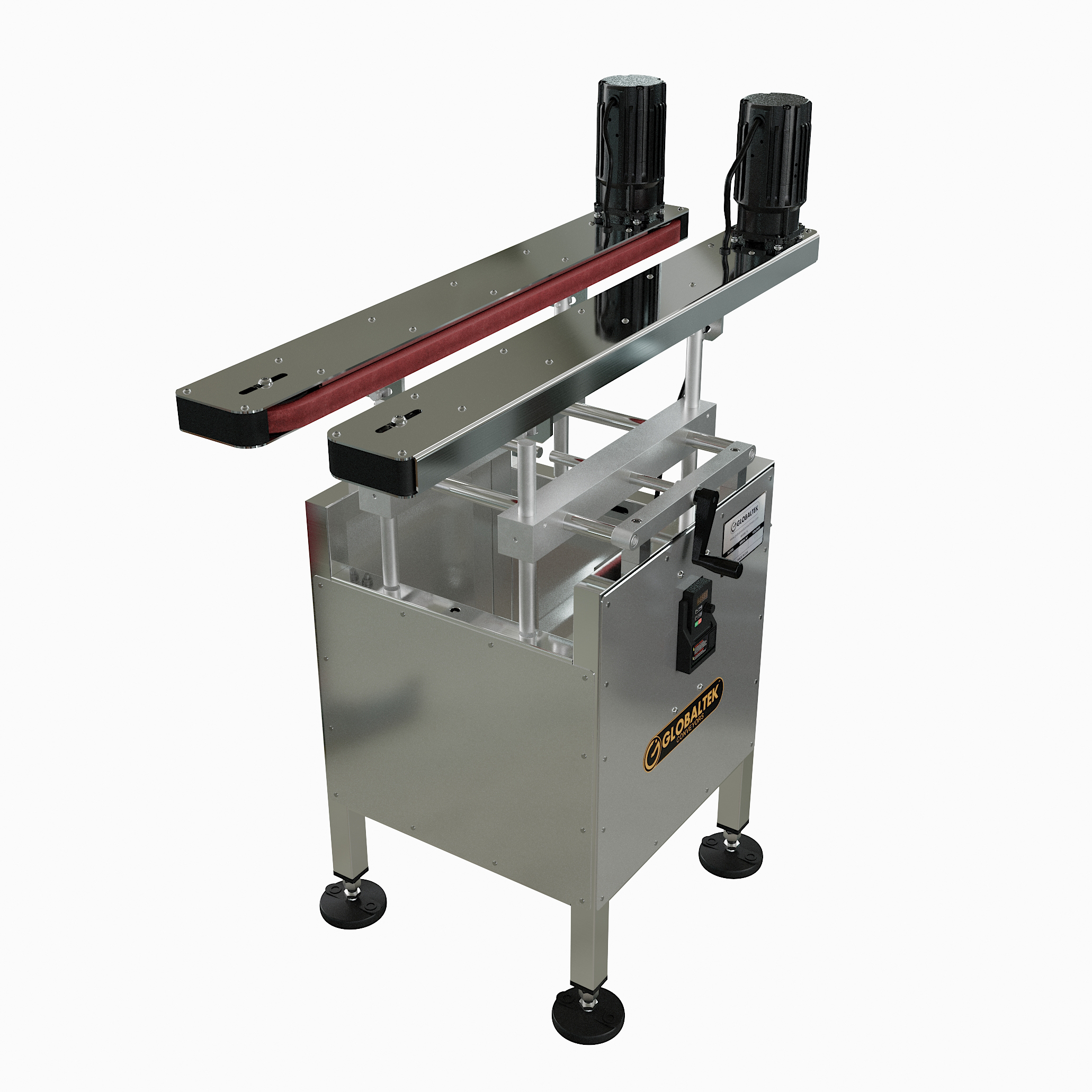

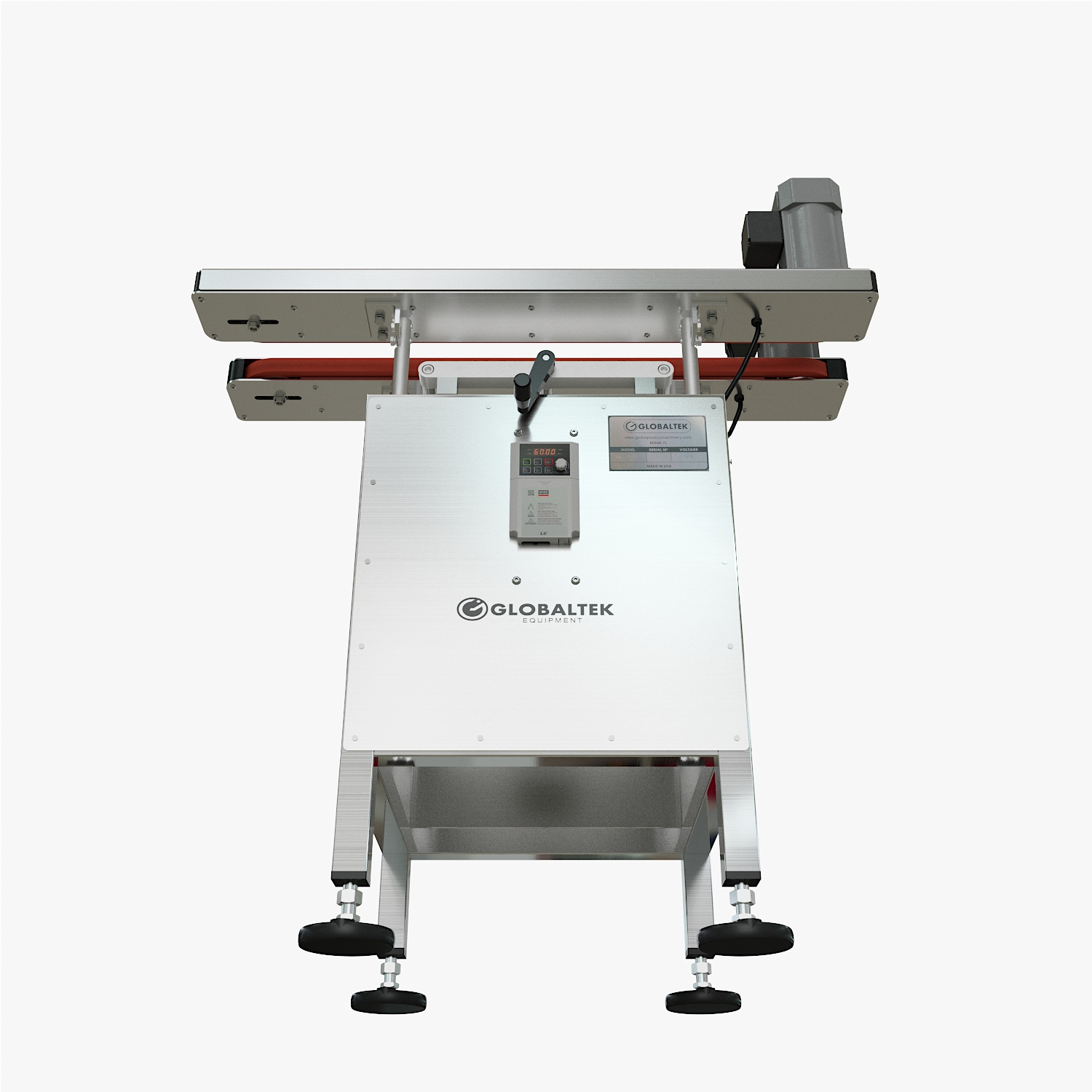

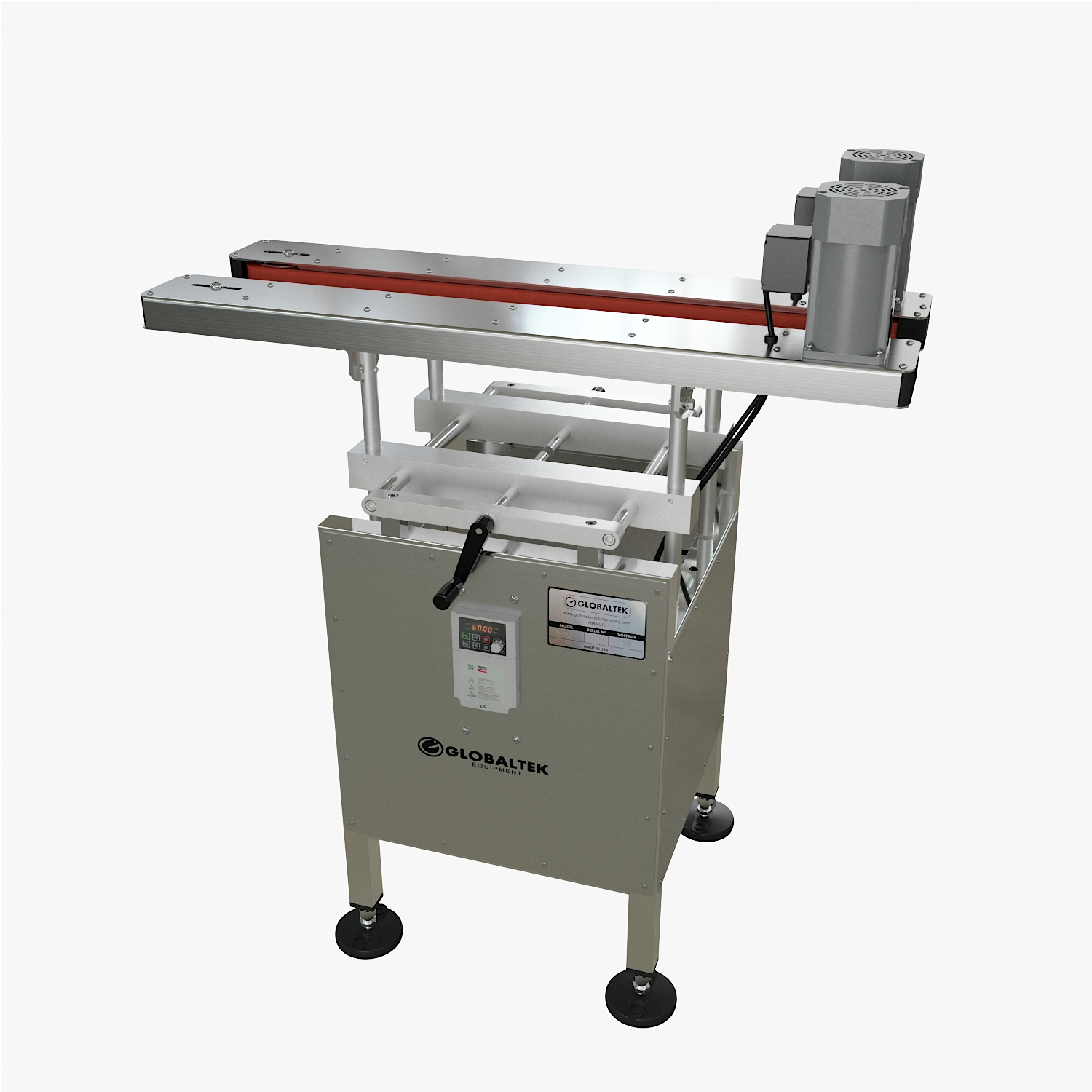

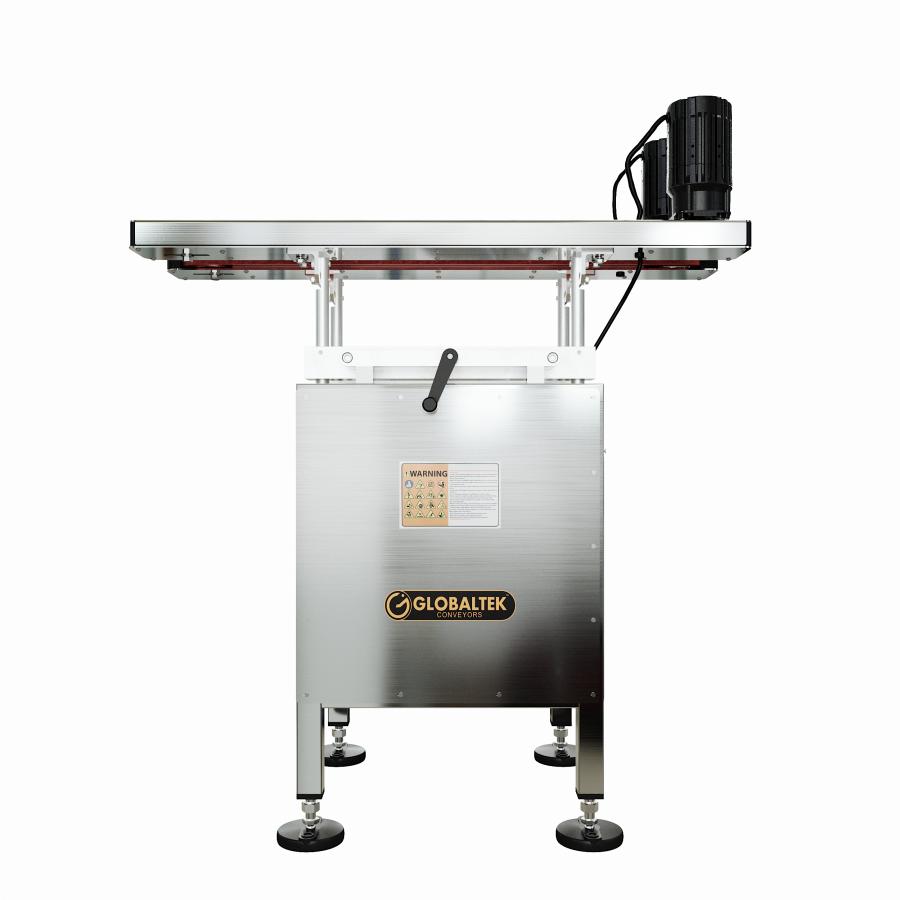

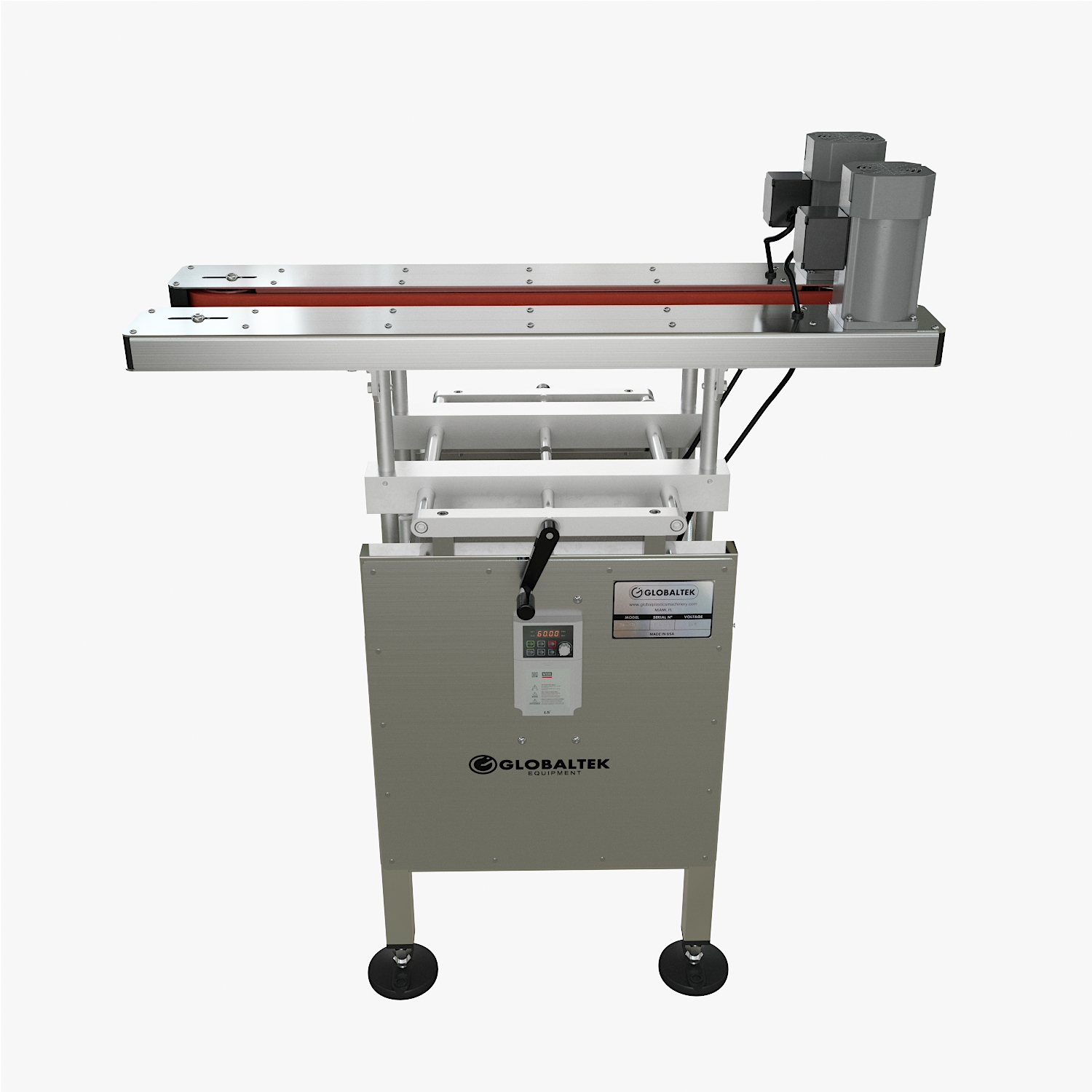

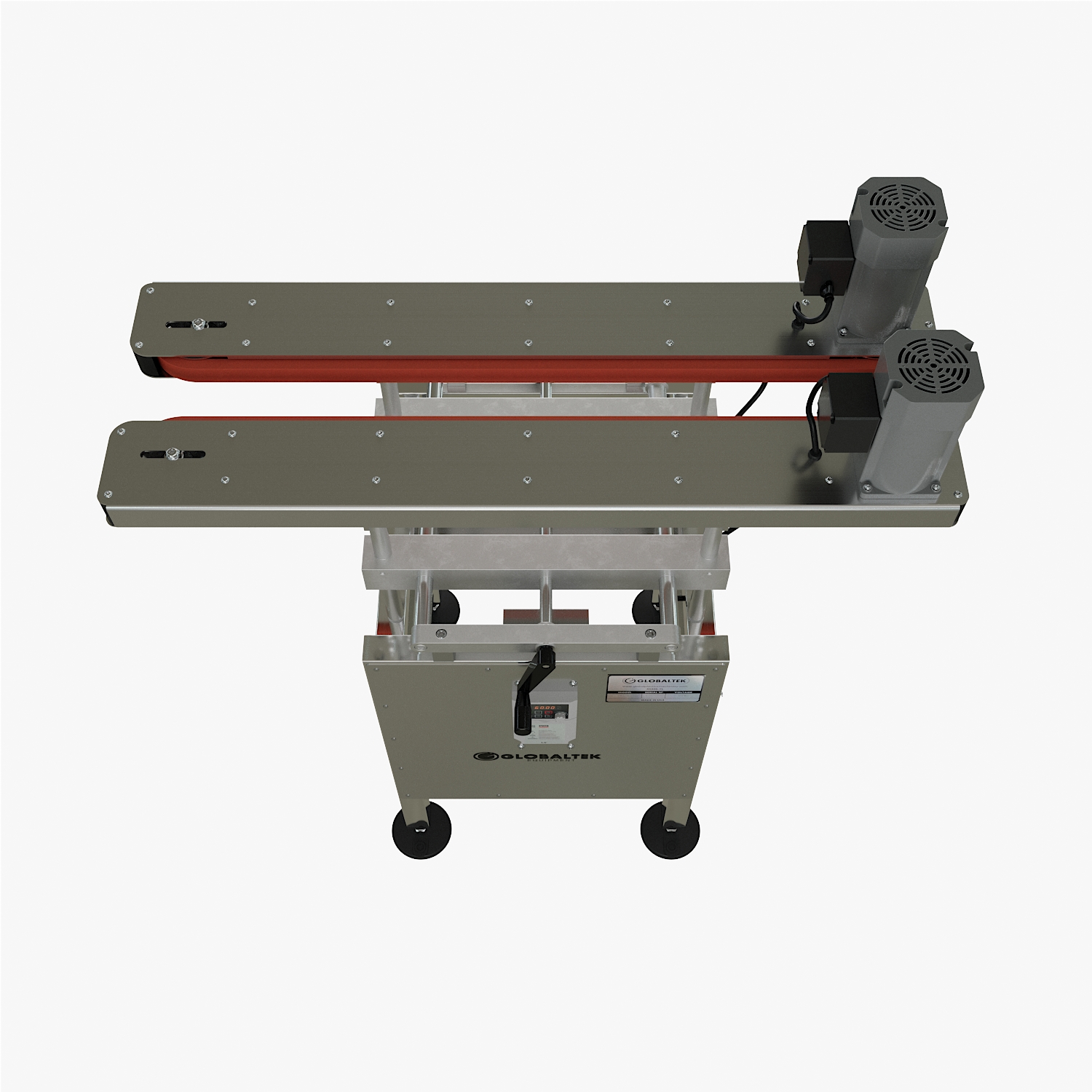

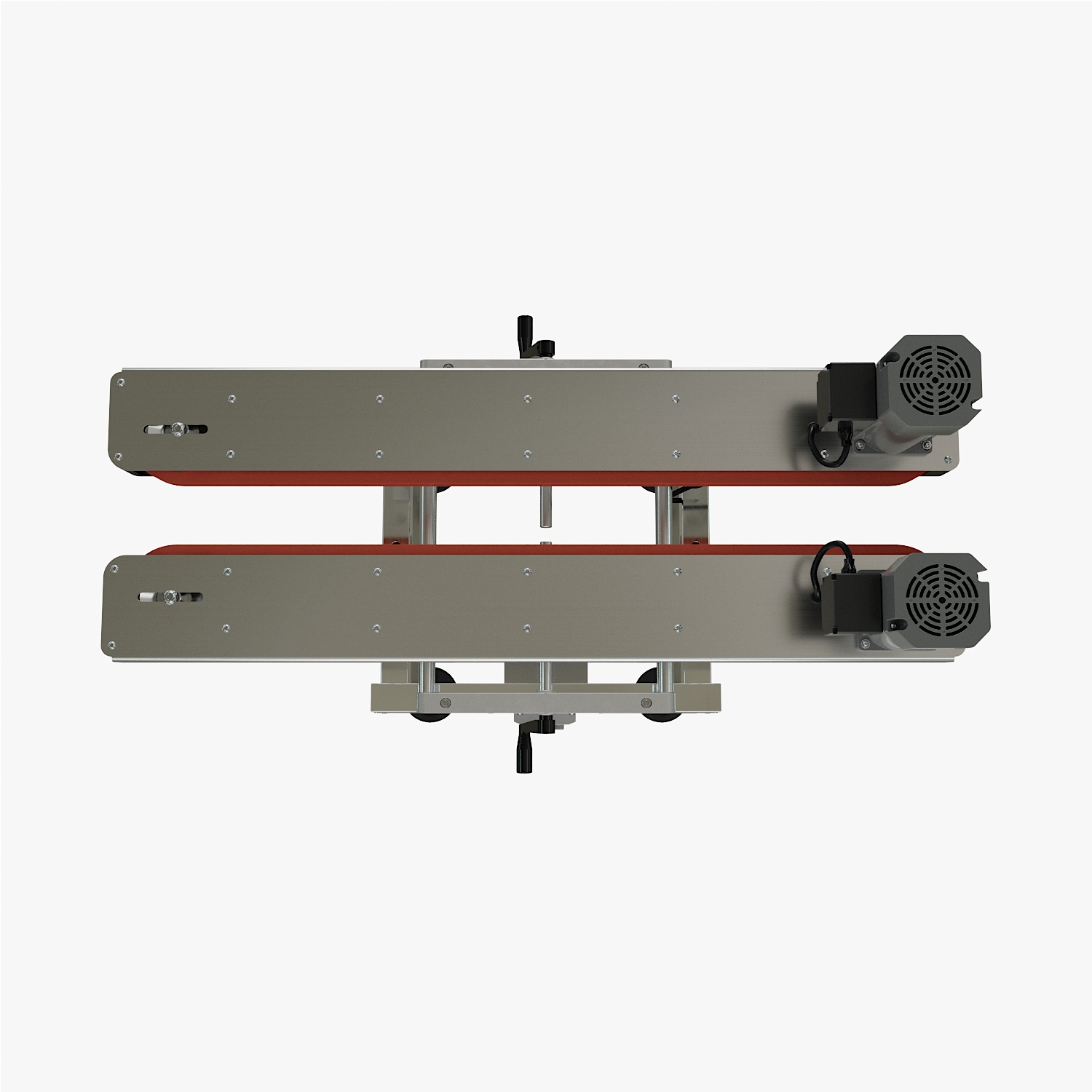

GLOBALTEK® Bottomless Side Belt Transfer Conveyor with Tilting Capabilities and Enclosed Frame ⚡

The GlobalTek® Bottomless Conveyor has variable speeds and is used in moving containers a short distance from one working/transportation conveyor to another. Designed to access the bottom side of the container for coding expiration dates, lot numbers, etc. The Gripper Belts are independently adjustable using an easy adjust handle wheel, accommodating containers up to 8" in diameter.

MAIN FEATURES

• MADE IN USA WITH 100% UL CERTIFIED COMPONENTS
• STAINLESS STEEL FRAME
• UP TO 80 FT/MIN
• PINCH POINT PROTECTION
• LS VARIABLE FRECUENCY DRIVE: INPUT VOLTAGE:115 PH / OUTPUT VOLTAGE 230 VAC/3PH
• TILTING CAPABILITIES UP TO 45 DEGREES SIDE TO SIDE

TECHNICAL DATA

 AC BROTHER GEARMOTOR 1/10 HP, 90 RPM, 74 IN-LBS , 230VAC THREE PHASE MOTOR

• MACHINE ELECTRICAL REQUIREMENTS: 115 VOLTS / 1 PH / 60 HZ
• ADJUSTABLE BELT OPENING: 0” TO 8“
• BELT SIZE: 36” L X 1” H
• FLOOR TO BELT HEIGHT: 35 ½” TO 42”
• OVERALL MACHINE DIMENSIONS: 38” L X 24 ½” W X 44” H

OPTIONAL FEATURES

• PRINT HEAD BRACKET
• BOTTLE SLIDING PLATE
• LOCKING CASTERS

WARRANTY

• 12 MONTHS (LIMITED WARRANTY)
